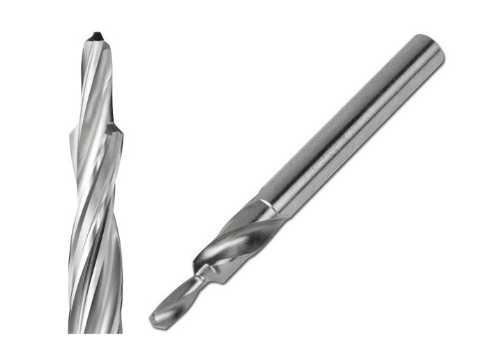

SublandDrill:
We are offering an enormous range of Solid Carbide Subland Drills. Our offered drills are broadly used for performing metal turning and cutting operations. Sourced from certified vendors’ of the market, the provided drills are manufactured by adept professionals using quality tested materials and hi-tech technique. Additionally, our quality controllers test these Solid Carbide Subland Drills against numerous parameters to ensure its unmatched quality, elevated durability and easy installation
Application of Subland drill:
- The subland drill eliminates secondary operations by drilling multi-diameter holes in one production pass.
- On certain applications particularly while making holes in steel or cast iron, the sub-land drill gives superior tool life as compared to other basic step drill of the same diameter.
- When drill bushing is applied and the material is being cut through, with subland drill ‘Double Margins’ can be supplied at no extra cost.
- As a result, the additional margins will give maximum support and guidance that will give more accurate size and hole location control.

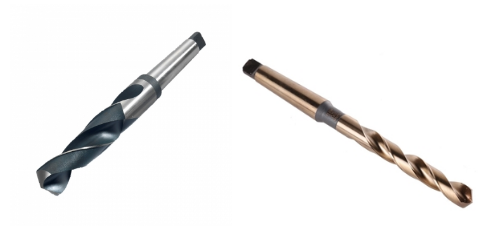

HSS Taper Shank Drills
High-speed steel (HSS) is a form of tool steel; HSS bits are hard and much more resistant to heat than high-carbon steel. They can be used to drill metal, hardwood, and most other materials at greater cutting speeds than carbon-steel bits, and have largely replaced carbon steels
Subland Drill:

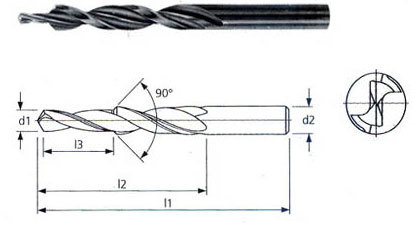

A Subland Drill (2-2) is basically two drills of different diameters combined into one tool, retaining the individual characteristics and proper geometry for each diameter. The independent flutes and margins of a Subland Drill ensure that size and concentricity between diameters is maintained throughout the life of the tool and is not affected by re-sharpening the point or step angles.
The Subland Drill (2-2) eliminates secondary operations by drilling multi-diameter holes in one production pass. On certain applications particularly holes in steel or cast iron, the Subland Drill (2-2) provides superior tool life compared to that of a basic step drill. When drill bushings are used "Double Margins" can be supplied for greater stability. The additional margins will give maximum support and guidance to provide more accurate size and hole location.
Subland Drills are not practical when the small diameter is less than 50% of the large diameter. The depth of the hole should not exceed 4 times the small diameter, but greater hole depth can be achieved by withdrawing the tool or "pecking" to clear chips.
Step Drill:
We are offering Step Drill that is demanded in the market for smooth and easy cuts. These are appreciated for high precision drilling and extreme wear resistance. The Drill, we offer are provided with relief angle of cutting edge for each step.
HSS Taper Shank Core Drill
